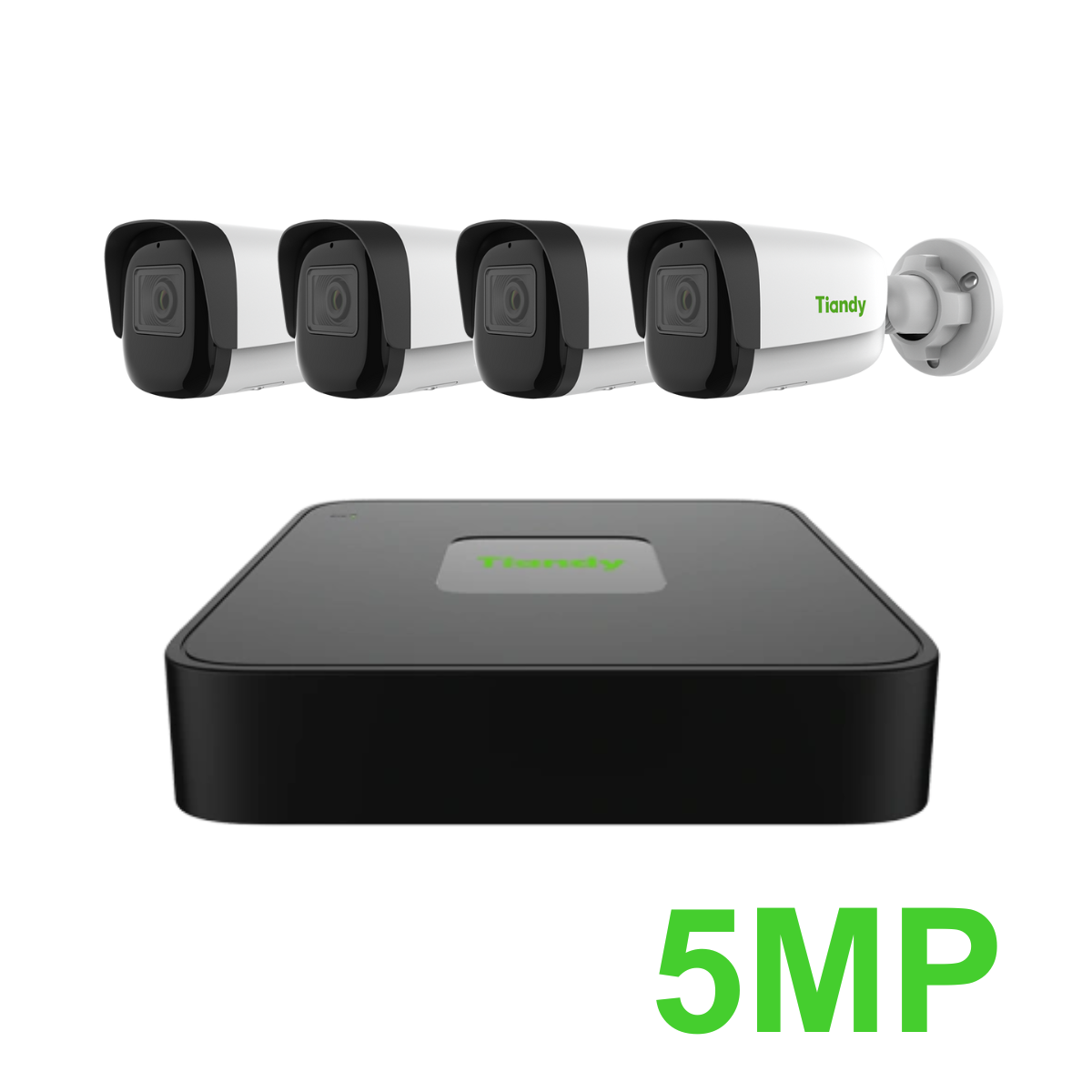

TC-R3104 / 4*TC-C35WS
- 1* TC-R3104
- 4* TC-C35WS
- Description
- Additional information
Description
| Camera | |
| Image Sensor | 1/2.8″ CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | Dual IR Cut Filter with Auto Switch |
| WDR | 120dB |
| Angle Adjustment | Bracket,pan:0° to 360°,tilt:0° to 75°,rotate:0° to 360° |
| Lens | |
| Lens Type | Fixed |
| Focus | 2.8mm/4mm |
| Lens Mount | M12 |
| Aperture | F1.6 |
| FOV | Horizontal field of view:94.7°(2.8mm)/80°(4mm)；Vertical field of view:71.2°(2.8mm)/58.1°(4mm) |
| Illuminator | |
| IR LEDs | 2 |
| IR Range | Up to 50 m |
| Wavelength | 850nm |
| White LEDs/Warmlights | N/A |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264 |
| Video Bit Rate | 32Kbps~6Mbps |
| Audio Compression | G.711A/G.711U/ADPCM_D_D |
| Audio Bit Rate | 8K,32K,48Kbps |
| Image | |
| Max. Resolution | 2592×1944 |
| Main Stream | PAL:20fps(2592×1944),25fps(2592×1520,2560×1440,2304×1296,1920×1080,1280×720) |
| NTSC:20fps(2592×1944),24fps(2592×1520,2560×1440),30fps(2304×1296,1920×1080,1280×720) | |
| Sub Stream | PAL:25fps(704×576,704×288,640×360,352×288) |
| NTSC:30fps(704×480,704×240,640×360,352×240) | |
| Third Stream | N/A |
| Image Setting | Saturation,brightness,contrast,sharpness,adjustable by client software or web browser |
| Image Enhancement | BLC/3D DNR/HLC |
| ROI | Support 8 fixed regions of coding |
| OSD | 16×16,32×32,48×48,64×64,adaptable size,Letters Such as Week,Date,Time,Total 1 Regions |
| Picture Overlay | N/A |
| Privacy Mask | Yes,4 regions |
| Smart Defog | Yes |
| Feature | |
| Alarm Trigger | Motion Detection,Mask Alarm,IP Address Conflict |
| Video Analytics | Tripwire,Perimeter |
| Early Warning(EW) | N/A |
| Network | |
| ANR | Yes(Only Support Tiandy ANR NVR) |
| Protocols | HTTP,TCP/IP,UDP,UPnP,ICMP,DHCP,DNS,DDNS,Easy DDNS,NTP,IPv4,RTSP,RTMP |
| System Compatibility | ONVIF(PROFILE S/T/G),SDK,CGI,Milestone,P2P(Mutually exclusive with Profile G) |
| Remote Connection | 2 |
| Client | Easy7,EasyLive Plus |
| Web Version | Web6 |
| Interface | |
| Communication Interface | 1 RJ45 10M/ 100M self adaptive Ethernet port |
| Audio I/O | 1/1,Mic in |
| Alarm I/O | 1/1 |
| Speaker | N/A |
| Reset Button | Yes |
| On-board storage | Built-in MicroSD card slot,up to 512 GB |
| General | |
| Web Client Language | 17 languages English,Russian,Spanish,Korean,Italian,Turkish,Simple Chinese,Traditional Chinese,Thai,French,Polish,Dutch,Hebraism,Arabic,Vietnamese,German,Ukrainian |
| Operating Conditions | -35℃~60℃ ,0～95% RH |
| Power Supply | DC 12V±25%,PoE(802.3af) |
| Power Consumption | MAX:6.5W(12V) MAX:8.5W(POE) |
| Protection | IP67 |
| Heater | N/A |
| Dimensions | 160.8x68x74.5mm(6.33×2.68×2.93 inch) |
| GrossWeight | 0.47Kg(1.03lb) |
| NetWeight | 0.31Kg(0.68lb) |
| Video and Audio | |
| Access Channel | 4 |
| Incoming Bandwidth | 60Mbps |
| Outgoing Bandwidth | 40Mbps |
| Resolution | 5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Preview Decoding Capability | 5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×1, 1080P(30fps)×2, 720P(30fps)×4, 4CIF(30fps)×4 |
| Third-party Camera Access | ONVIF; RTSP |
| HDMI Output | HDMI:1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz) |
| Multi-screen Display | 1/3/4 |
| Compression | |
| Video | S+265; H.265; S+264; H.264 |
| Audio | G711A; G711U; ADPCM_DIV4 |
| Stream Type | Video; Video & Audio |
| Network | |
| Network Protocol | ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; ICMP; IGMP; IPv4; IPv6; NTP; RTCP; RTP; RTSP; SSH; TCP/IP; UDP; UPnP |
| Mobile Phone Access | Android; iOS; P2P_A |
| System Compatibility | CGI; SDK |
| Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
| Record Playback | |
| Multi-channel Playback | 4 |
| Record Mode | Alarm recording; Schedule recording |
| Storage Method | Local HDD |
| Backup | USB storage device |
| Playback Function | Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full screen/backup (video Editing) |
| Alarm | |
| General Alarm | Motion; Mask Alarm; Video Loss |
| Exceptions Alarm | IP Conflict; MAC Conflict; Network Disconnected; No disk; Illegal Access; Disk Full; Disk R/W error; Video Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; PoE overloaded; IPC voltage abnormal; RTC failure |
| Intelligent Analytics | |
| AI by Camera | Advanced Intelligence |
| Storage | |
| HDD Capacity | Up to 6TB capacity for each HDD |
| External Port | |
| USB | 2×USB2.0 |
| HDMI | 1×HDMI |
| Network Interface | 1×RJ-45, 10/100 Mbps self-adaptive Ethernet port |
| SATA | 1×SATA interface |
| PoE | |
| PoE Interface | 4×RJ45, 10/100 Mbps self-adaptive Ethernet port |
| PoE Budget | 28W |
| Power per PoE Port | 28W |
| Standard | IEEE 802.3 af/at |
| General | |
| UI Language | English; Spanish; Italian; Turkish; French; Polish; Dutch; Hebrew; German; Portuguese |
| Power Supply | DC48V 1A |
| Power Consumption | <10W(without HDD&without PoE) |
| NetWeight | 0.4kg |
| GrossWeight | 0.85kg |
| Boundary Dimensions | 200(L)200(W)43(H)mm |
| Package Dimensions | 315(L)70(W)235(H)mm |
| Operating Temperature | -10℃~+55℃ |
| Operating Humidity | 10%~90%RH |
| Storage Temperature | -10℃~+55℃ |
| Storage Humidity | 10%~90%RH |
| Package Kit | Network Video Recorder; Screw pack; Mouse; Power adapter |
