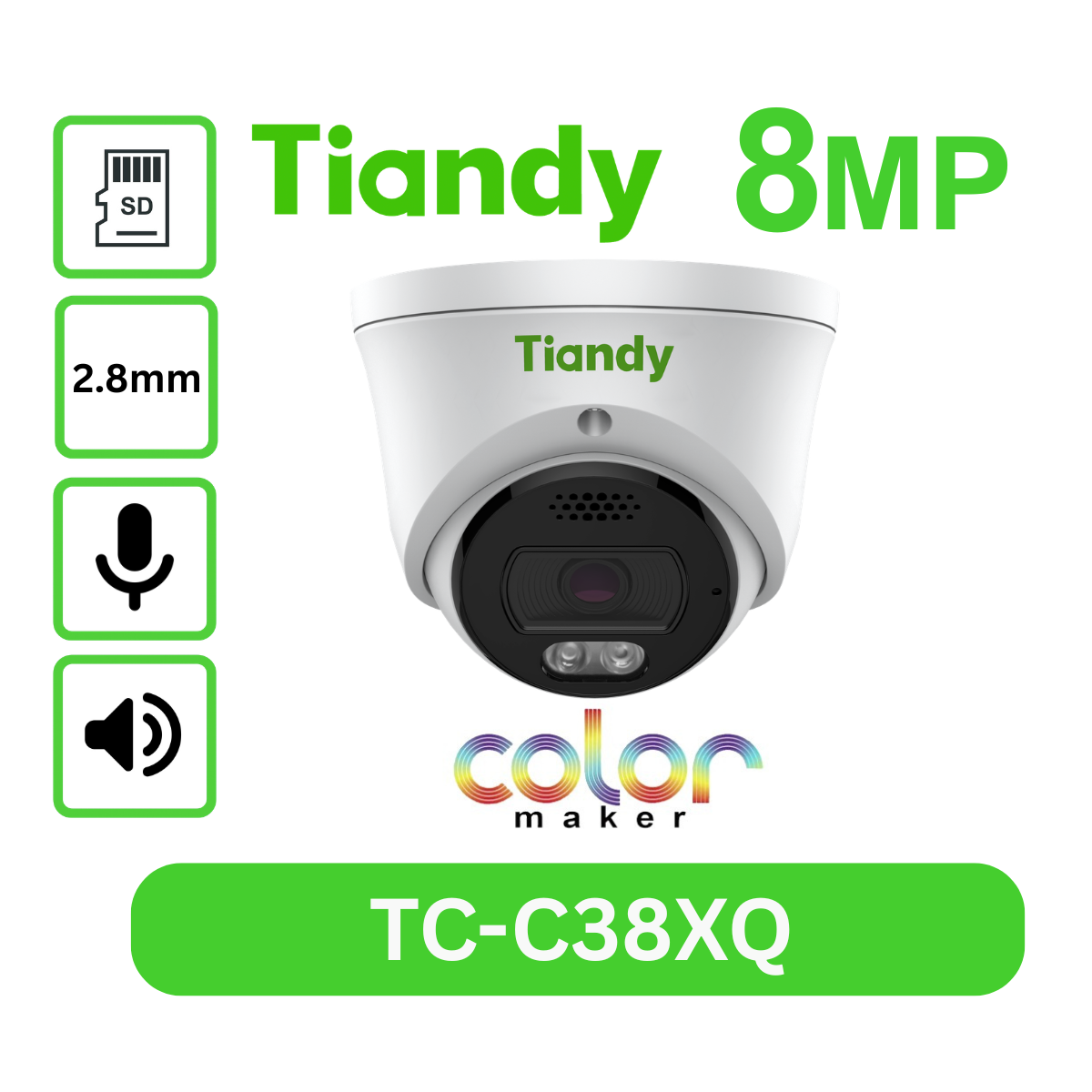

8MP Trilight Fixed Camera TC-C38XQ I3W/E/Y/2.8mm/V4.2

·Metal
·Up to 3840×2160@20fps
·S 265/H.265/H.264
·Min. illumination Color: 0.002Lux@F1.6
·Smart IR, IR Range: 30m
·Support tripwire,perimeter&Human/Vehicle Classification
·Built-in Mic, SD Card Solt
·Operating Conditions -40°~65°, 0~95% RH
·POE, IP67

SKU: TC-C38XQ

Description

Date Title Type Download
2022-12-13 TC-C38XQ Spec-I3W-E-Y-2.8-V4.2 pdf
Camera
Image   Sensor 1/2.8″ CMOS
Signal   System PAL/NTSC
Min.   Illumination Color: 0.002Lux@ (F1.6, AGC ON), B/W:   0Lux with IR
Shutter   Time 1s   to 1/100,000s
Day   & Night Dual IR Cut Filter with Auto Switch
Wide   Dynamic Range 120dB
Angle   Adjustment Bracket, pan: 0° to 340°, tilt: 0° to 75°,   rotate: 0° to 360°
Lens
Lens   Type Fixed
Focus 2.8mm
Lens   Mount M12
Aperture F1.6, Fixed
FOV Horizontal   field of view: 105.3°
Vertical field of view: 56.9°
Diagonal field of view: 127.9°
Illuminator
IR   LEDs 2
IR   Range Up   to 30 m
Wavelength 850nm
White   LEDs/Warmlights 2
Range 15-20m
Compression   Standard
Video   Compression S 265/H.265/H.264
Video   Bit Rate 32   Kbps~16 Mbps
Audio   Compression G.711A/G.711U/ADPCM_D/AAC_LC
Audio   Bit Rate 8K~48Kbps
Max.   Resolution 3840×2160
Main   Stream PAL:20fps(3840×2160,3072×2048),25fps(2560×1440,2304×1296,1920×1080,1280×720)
NTSC: 20fps(3840×2160,3072×2048),30fps(2560×1440,2304×1296,1920×1080,1280×720)
Sub   Stream PAL:   25fps(704×576,704×288,352×288,640×360)
NTSC: 30fps(704×480,704×240,352×240,640×360)
Third   Stream PAL:25fps(704×576,704×288,352×288,640×480)
NTSC:   30fps(704×480,704×240,352×240,640×480)
Image   Setting Saturation, brightness, contrast,   sharpness, adjustable by client software or web browser
Image   Enhancement BLC/3D   DNR/HLC
ROI 8
OSD 16×16, 32×32, 48×48,   64×64, 96×96, adaptable size,   Letters Such as Week, Date, Time, Total 3 Regions
Picture   Overlay Yes
Privace   Mask Yes,   4 regions
Smart   Defog Yes
Feature
Alarm   Trigger Motion   Detection, Mask Alarm, IP Address Conflict
Video   Analytics Tripwire, Perimeter
Early   Warning(EW) Yes
Network
ANR Yes(Only   Support Tiandy ANR NVR)
Protocols HTTP,HTTPS,TCP/IP,UDP,UPnP,ICMP,IGMP,SNMP,DHCP,DNS,DDNS,   Easy   DDNS,NTP,SSL,802.1X,QoS,IPV4,IPV6,PPPoE,SSH,Unicast,Multicast,RTCP,ARP,SRTP,RTMP
System   Compatibility ONVIF   (PROFILE S/T/G), SDK, CGI,Milestone,P2P
Remote   Connection ≤2
Client Easy7,   EasyLive Plus
Web   Version Web6
Interface
Communication   Interface 1   RJ45 10M/ 100M self adaptive Ethernet port
Audio   I/O 1/1
Alarm   I/O 1/1
Speaker Yes
Reset   Button N/A
On-board   storage Built-in   MicroSD card slot, up to 512 GB
General
Web   Client Language 17   languages
Simplified Chinese/English/Traditional   Chinese/Spanish/Italian/Korean/Turkish/Russian/Thai/Polish/French/Dutch/Hebrew/Vietnamese/Arabic/German/Ukrainian
Operating   Conditions -40℃~65℃, 0~95% RH
Power   Supply DC   12V±25%, PoE (802.3af)
Power   Consumption MAX: 6.5W(12V) MAX: 8W(POE)
Protection IP67
Heater N/A
Dimensions 117×117x84mm
Net   Weight 0.5kg
Gross   Weight 0.7kg
