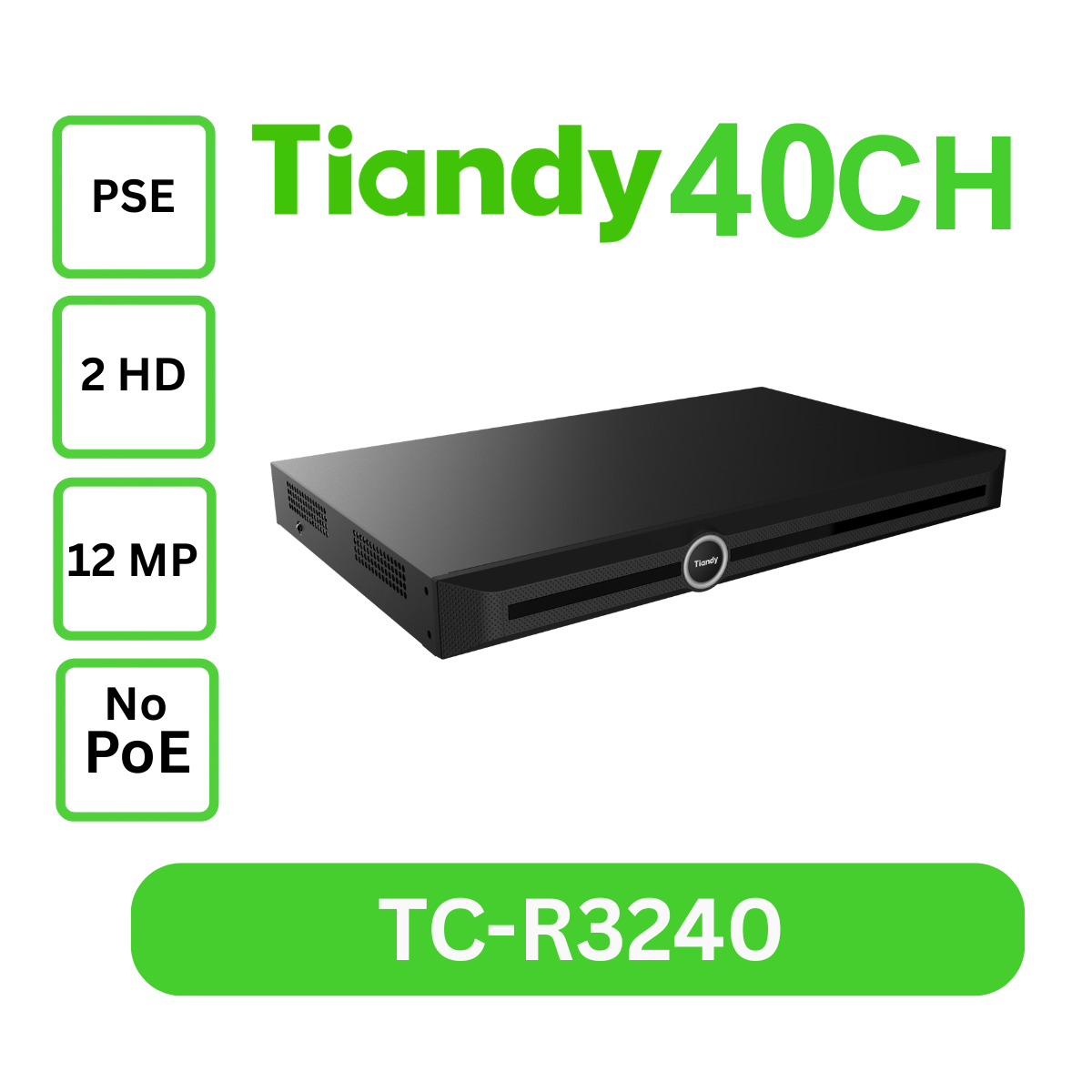

NVR 40ch 12mp 2HDD TC-R3240 I/B/N/H
• S 265 Compression
• Support 40-ch input
• Up to 12MP Resolution Recording
• Incoming Bandwidth 320Mbps
• Outgoing Bandwidth 320Mbps
- Description
- Additional information
Description
| Date | Title | Type | Download |
|---|---|---|---|
| 2021-06-24 | TC-R3240 Spec-I-B-N-H |  |
| Input | |
| Video Input | 40-ch |
| Max Resolution | 12MP |
| Two-way Audio Input | 1-ch, 3.5mm |
| Bandwidth | Income 320Mbps; Outgoing 320Mbps |
| Output | |
| HDMI/VGA Output | HDMI 1-ch, 3840×2160, 2560×1600, 2560×1440, 1920×1080, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800 |
| VGA 1-ch, 1920×1080, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800 | |
| Screen Split | 1/3/4/6/8/9/10/13/16/20/25/36/40/64 |
| Audio Output | 1×RCA |
| Decoding | |
| Decoding Format | S 265/H.265/H.264 |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Preview Capability | 3×12MP, 4×8MP, 4×6MP, 5×5MP, 8×4MP, 9×3MP, 16×1080P, 32×720P, 40×4CIF |
| Synchronous Playback | 3×12MP, 4×8MP, 4×6MP, 5×5MP, 8×4MP, 9×3MP, 16×1080P, 16×720P |
| Records Encryption | Yes |
| Hard Disk | |
| SATA | 2 SATA interfaces for 2 HDDs |
| Capacity | Up to 10TB for each HDD |
| eSATA Interface | N/A |
| Array Type | N/A |
| External Interface | |
| Network Interface | 2xRJ45 self-adaptive 10/100/1000 Mbps network interfaces |
| USB Interface | 1xUSB 2.0, 1xUSB 3.0 |
| Serial Interface | 1xRS-485, 1xRS-232 |
| Alarm In/Out | 16/4 |
| Network | |
| Protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, IGMP, QoS, IPV4, IPV6, Multicast, ARP, UDP, SNMP, SSL, Telnet, RTMP, NFS |
| System Compatibility | ONVIF (PROFILE S/T/G), SDK, P2P |
| General | |
| Web Version | Web6 |
| Language | Simple Chinese, Traditional Chinese, English, Spanish, Korean, Italian, Turkish, Russian, Thai, French, Polish, Dutch, Hebraism, Arabic |
| Operating Conditions | -10℃～55℃, 10%~90% RH |
| Power Supply | 100~240V AC, 50~60 Hz |
| Consumption (without HDD) | ≤25W (without HDD) |
| Chassis | 1U |
| Dimensions | 47.5×277×440mm, (1.87×10.91×17.32 inch) |
| Weight (without HDD) | 2.3Kg (5.07lb) |
