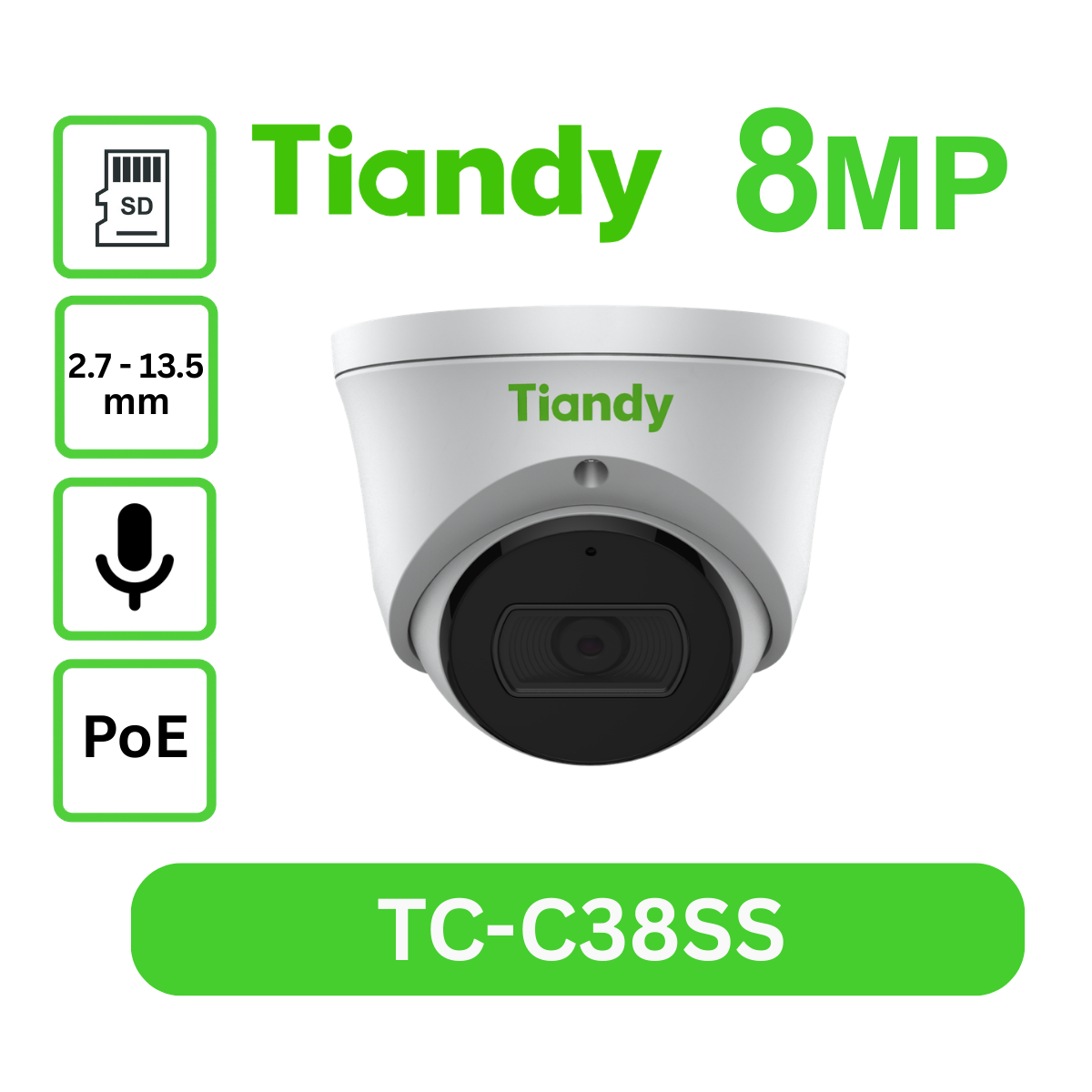

8MP Starlight Motorized TC-C38SS I5/A/E/Y/M/H/2.7-13.5mm/V4.0

  • Metal housing
  • Up to 8MP,3840×2160@30fps
  • S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
  • Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR
  • IR range up to 30m
  • Built-in Mic
  • Support microSD/microSDHC/microSDXC card,up to 512GB
  • Support smart surveillance
  • Support human/vehicle classification
  • Operating conditions -40℃~65℃(-40℉~149℉), ≤95%RH
  • DC12V±25%,Max. 8W, PoE:IEEE 802.3af,Max. 9W
  • IP66
Availability: Available on backorder SKU: TC-C38SS

Description

Date Title Type Download
2024-07-03 1D.20010.003141_TC-C38SS I5AEYMH2.7-13.5mmV4.0_en pdf
Camera
Image Sensor 1/2.8″CMOS
Min. Illumination Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR
Shutter Time 1s~1/100000s
Day&Night IR-cut filter with auto switch (ICR)
Smart IR Yes
WDR 120dB
S/N >42dB
Angle Adjustment 0~340°(P); 0~65°(T); 0~360°(R)
Lens
Lens Type Motorized
Focal Length 2.7~13.5mm
Lens Mount Φ14
Aperture Range F1.6
Aperture Type Fixed
Field of View 106.7°~31.5°(H); 57.3°~17.8°(V); 130.9°~34.8°(D)
DORI Distance Detect:77m~331m Observe:30.55m~131m Recognize:15.5m~66m Identify:7.5m~33m
Illuminator
IR LEDs 2
IR Distance Up to 30m
Wavelength 850nm
Compression Standard
Video Compression S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
Video Bit Rate 32k~16Mbps
Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC
Audio  Sampling Rate 8kHz/32kHz/48kHz
Max. Resolution 8MP,3840×2160@30fps
Main Stream PAL:25fps(3840×2160, 3072×2048, 2560×1440, 2304×1296, 1920×1080, 1280×720) NTSC:30fps(3840×2160, 3072×2048, 2560×1440, 2304×1296, 1920×1080, 1280×720)
Sub Stream PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:30fps(704×480, 704×240, 640×360, 352×240)
Third Stream PAL:25fps(704×576, 704×288, 352×288, 640×480) NTSC:30fps(704×480, 704×240, 352×240, 640×360)
BLC Yes
HLC Yes
AGC Yes
3D DNR Yes
White Balance Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance
ROI 8 rectangular static areas
Corridor Mode Yes
OSD Overlay of additional characters in 5 regions, 2 lines, with a maximum of 127 characters or 42 Chinese characters per region; 16*16/32*32/48*48/64*64/96*96
Picture Overlay 1*200×200 size BMP 24 color bit image overlay
Privacy Mask 4 black static areas
Defog Yes
Feature
General Alarm Motion Detection; Mask Alarm; Alarm Input
Exceptions Alarm Voltage Alarm; Disk Full; Disk R/W Error; IP Address Conflict; MAC Address Conflict; FTP Server Exception
Linkage Method Send Email; Trigger Sound; Trigger Recording; Trigger Capture; Notify Surveillance Center; Alarm Output
Video Analytics Human/Vehicle Classification; Tripwire; Double Tripwire; Perimeter; Object  Abandon; Object Lost; Heatmap; Loitering; Running; Parking; People Counting; Crowed; Safety Helmet Detection; On Duty Detection; Video Abnormal; Audio Abnormal
Rules of Behavior Analyse In 1 Scene 8
Network
ANR Yes
Protocols HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP v1\v2\v3; DHCP; DNS; DDNS; Easy DDNS; NTP; SMTP; TLS v1.2; SSL; 802.1X; QoS; IPv4; IPv6; PPPoE; SSH; Unicast; Multicast; RTCP; ARP; SRTP; FTP; SFTP
System Compatibility ONVIF(Profile S/T/G/M) ; SDK; CGI; Milestone; RTSP; RTMP
Remote Connection ≤7
Client Easy7 VMS
Moblie Client EasyLive Plus
Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
Interface
Communication Interface 1*RJ-45 (10/100 Base-T)
Audio I/O 1; 1
Alarm I/O 2-ch,TTL inputs,3mA,3.3VDC; 1-ch,relay output,1A,24VDC
Built-in Mic Yes
Reset Button Yes
On-board Storage Support microSD/microSDHC/microSDXC card,up to 512GB
RTC Yes
Additional Interfaces RS-485
General
Web Client Language 19 languages Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian
Operating Temperature -40℃~65℃(-40℉~149℉)
Operating Humidity ≤95%RH
Storage Temperature -40℃~65℃(-40℉~149℉)
Storage Humidity 10%~95%RH(non-condensing)
Power Supply DC12V±25%,Max. 8W; PoE:IEEE 802.3af,Max. 9W
Protection Surge4000V; ESD6000V; IP66
Boundary Dimensions 132(L)132(W)108.2(H)mm
Package Dimensions 180(L)170(W)130(H)mm
GrossWeight 0.9kg







Additional information

Weight 0.7 kg
