TC-C38WS

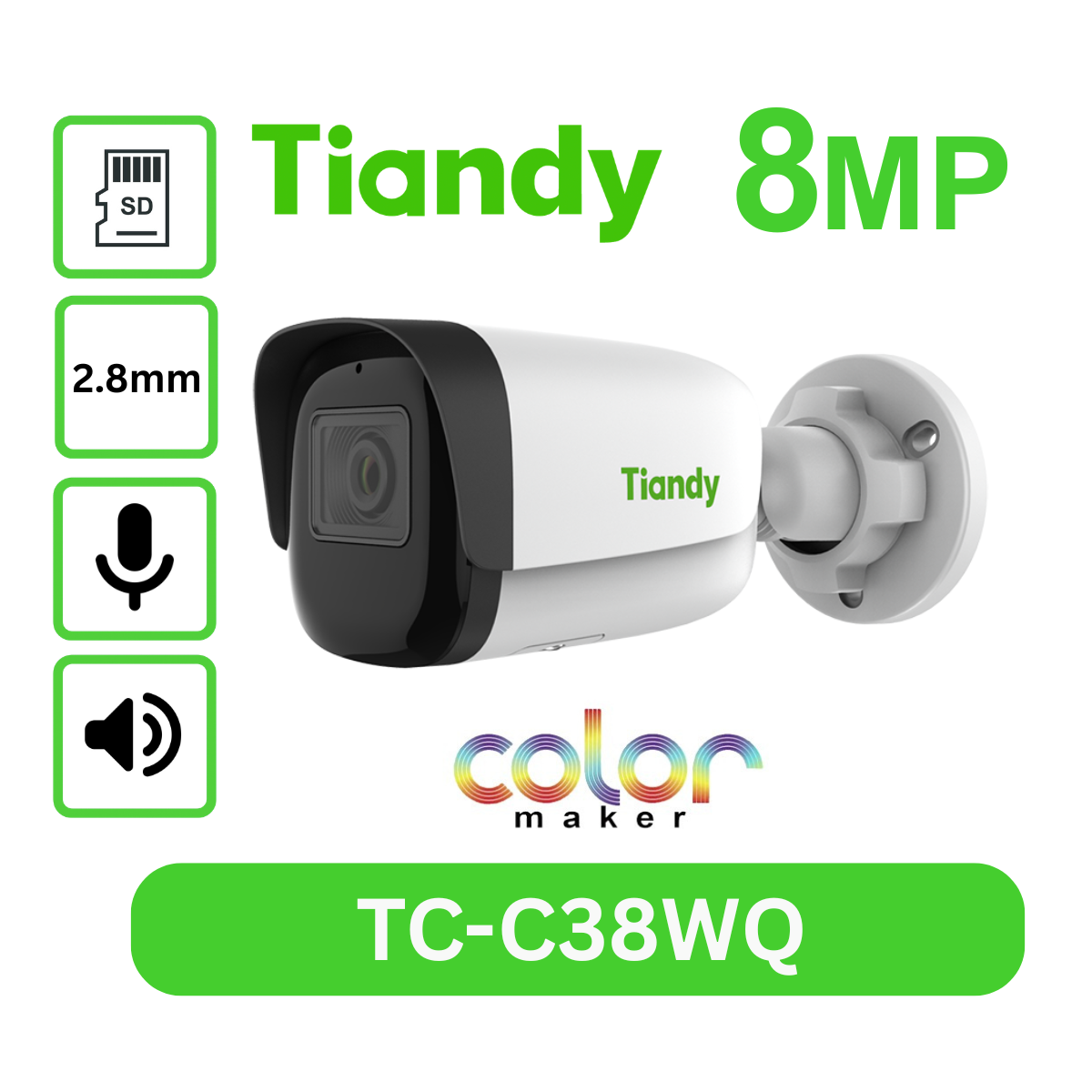

8MP Starlight TC-C38WQ 2.8mm IR Fixed Bullet Camera I5W/E/Y/2.8mm/v4.2

2MP Fixed TC-C32GN IR Bullet Camera I5/E/C/4mm/V2.0
  • · Full Metal Housing
  • · Up to 3840×2160@20fps
  •  S 265/H.265/H.264
  •  Min. illumination Color: 0.003Lux@F1.6
  •  120dB WDR
  •  Smart IR, IR Range: 50m
  •  Support tripwire and perimeter
  •  Built-in Mic, SD Card Slot, Reset Button
  •  Operating Conditions -40℃~65℃, 0~95% RH
  •  POE, IP67
Availability: 1 in stock SKU: TC-C38WS

Description

Date Title Type Download
2024-04-02 1D.20010.004397_TC-C38WQ I5WEY2.8mmV4.2_en pdf



Camera
Image Sensor 1/2.8″CMOS
Min. Illumination Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR
Shutter Time 1s~1/100000s
Day&Night IR-cut filter with auto switch (ICR)
WDR 120dB
S/N >42dB
Angle Adjustment 0~360°(P); 0~90°(T); 0~360°(R)
Lens
Lens Type Fixed focal lens
Focal Length 2.8mm
Lens Mount M12
Aperture Range F1.6
Field of View 105.3°(H); 56.9°(V); 119.7°(D)
DORI Distance Detect:77m Observe:30.5m Recognize:15.5m Identify:7.5m
Illuminator
IR LEDs 2
IR Distance 50m
Wavelength 850nm
White LEDs 2
Whitelight Distance 15m
Compression Standard
Video Compression S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
Video Bit Rate 32k~16Mbps
Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC
Audio  Sampling Rate 8kHz/32kHz/48kHz
Max. Resolution 3840×2160@20fps
Main Stream PAL:20fps(3840×2160, 3072×2048), 25fps(2560×1440, 2304×1296, 1920×1080, 1280×720) NTSC:20fps(3840×2160, 3072×2048), 30fps(2560×1440, 2304×1296, 1920×1080, 1280×720)
Sub Stream PAL:25fps(704×576, 704×288, 352×288, 640×360) NTSC:30fps(704×480, 704×240, 352×240, 640×360)
Third Stream PAL:25fps(704×576, 704×288, 352×288, 640×480) NTSC:30fps(704×480, 704×240, 352×240, 640×480)
BLC Yes
HLC Yes
AGC Yes
3D DNR Yes
White Balance Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance
ROI 8 rectangular static areas
Corridor mode Yes
OSD Overlay of additional characters in 5 regions, 2 lines, with a maximum of 127 characters or 42 Chinese characters per region; 16*16/32*32/48*48/64*64/96*96
Picture Overlay 1*200×200 size BMP 24 color bit image overlay
Privacy Mask 4 black static areas
Defog Yes
Feature
Alarm Trigger Motion Detection; Mask Alarm; Voltage Alarm; Disk Full; Disk R/W Error; IP Address Conflict; MAC Address Conflict; FTP Server Exception ; Event Input,

Event Output
Linkage Method send email; trigger sound; trigger warmlight; trigger recording; trigger capture; notify surveillance center
Video Analytics Human/Vehicle Classification; Tripwire; Perimeter; Video Abnormal; Audio Abnormal
Rules of behavior analyse in 1 scene 8
Early Warning(EW) Early Warning(EW)
Network
ANR Yes
Protocols HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; DHCP; DNS; DDNS; Easy DDNS; NTP; SMTP; SSL; 802.1X; QoS; IPv4; IPv6; PPPOE; SSH; Unicast;

Multicast; RTCP; ARP; SRTP; RTSP; FTP; SFTP; NAS
System Compatibility ONVIF Profile S/T/G/M; CGI; Milestone; RTMP
Remote Connection ≤7
Client Easy7 Smart Client
Moblie Client EasyLive Plus
Interface
Communication Interface 1*RJ-45,10/100 Mbps self-adaptive Ethernet port
Audio I/O 1; 1
Alarm I/O 1-ch,TTL input,3mA,3.3VDC; 1-ch,TTL output,30mA,12VDC
Reset Button Yes
On-board storage Support microSD/microSDHC/microSDXC card, up to 512 GB
RTC Yes
General
Web Client Language 19 languages Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/

Ukrainian/Portuguese/Albanian
Operating Temperature -40℃~65℃(No turning on the light)
Operating Humidity Humidity 95% or less (no condensation)
Storage Temperature -40℃~65℃
Storage Humidity Humidity 95% or less (no condensation)
Power Supply DC12V±25%,MAX 7W; POE 802.3af,MAX 8.5W
Protection Surge4000V; ESD6000V; IP67
Boundary Dimensions 170(L)73(W)73(H)mm
Package Dimensions 195(L)95(W)105(H)mm
GrossWeight 0.73kg
