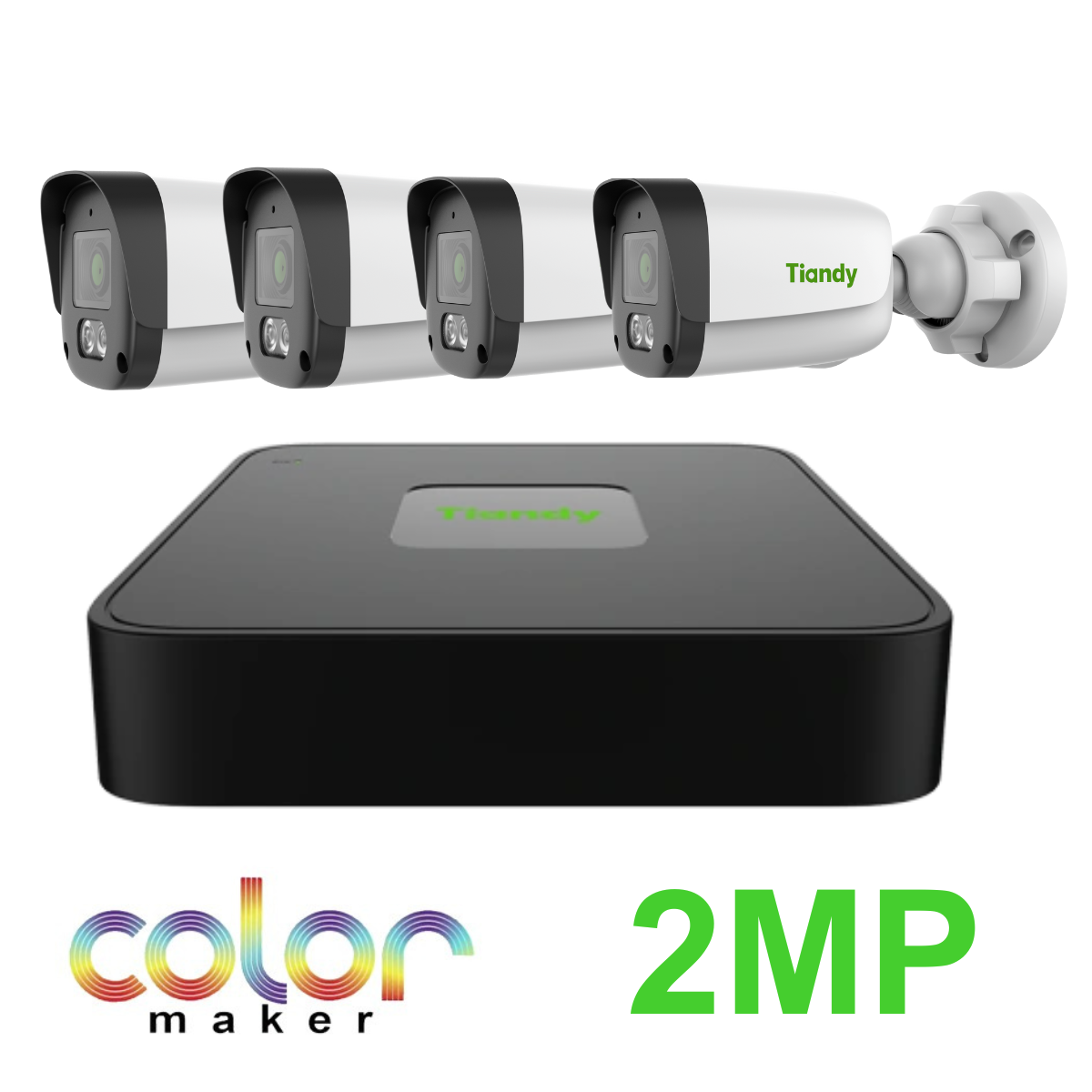

TC-R3104 / 4*TC-C321N AK2
- 1* TC-R3104
- 4* TC-C321N AK2
- Description
- Additional information
Description
| Series: | Analog Killer |
| Standard: | IP |
| Resolution: | 1920 x 1080 – 1080p , 1280 x 720 – 720p |
| Sensor: | 1/3 ” Progressive Scan CMOS |
| Lens: | 2.8 mm |
| View angle: |
|
| Range of IR illumination: | 30 m |
| Memory card slot: |  |
| Image compression method: | S+265 / H.265 / H.264 |
| Alarm inputs / outputs: | |
| Audio: |
|
| Main stream frame rate: | 25 fps @ 2 Mpx |
| Network interface: | 10/100 Base-TX (RJ-45) |
| WEB Server: | Built-in |
| Max. number of on-line users: | 1 |
| ONVIF: |  |
| Mobile phones support: | |
| Default IP address: | DHCP or 192.168.1.2 |
| Default admin user / password: | admin / – The administrator password should be set at the first start |
| Web browser access ports: | 80 |
| ONVIF port: | 80 |
| Main features: |
|
| Protections: |
|
| Power supply: |
|
| Power consumption: | ≤ 6 W |
| Housing: | Compact – Metal + Plastic |
| Color: | White |
| “Index of Protection”: | IP67 |
| Vandal-proof: | |
| Operation temp: | -30 °C … 60 °C |
| Weight: | 0.21 kg |
| Dimensions: | 164 x 73 x 73 mm |
| Supported languages: | English |
| Manufacturer / Brand: | TIANDY |
| Video and Audio | |
| Access Channel | 4 |
| Incoming Bandwidth | 60Mbps |
| Outgoing Bandwidth | 40Mbps |
| Resolution | 5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Preview Decoding Capability | 5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×1, 1080P(30fps)×2, 720P(30fps)×4, 4CIF(30fps)×4 |
| Third-party Camera Access | ONVIF; RTSP |
| HDMI Output | HDMI:1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz) |
| Multi-screen Display | 1/3/4 |
| Compression | |
| Video | S+265; H.265; S+264; H.264 |
| Audio | G711A; G711U; ADPCM_DIV4 |
| Stream Type | Video; Video & Audio |
| Network | |
| Network Protocol | ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; ICMP; IGMP; IPv4; IPv6; NTP; RTCP; RTP; RTSP; SSH; TCP/IP; UDP; UPnP |
| Mobile Phone Access | Android; iOS; P2P_A |
| System Compatibility | CGI; SDK |
| Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
| Record Playback | |
| Multi-channel Playback | 4 |
| Record Mode | Alarm recording; Schedule recording |
| Storage Method | Local HDD |
| Backup | USB storage device |
| Playback Function | Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full screen/backup (video Editing) |
| Alarm | |
| General Alarm | Motion; Mask Alarm; Video Loss |
| Exceptions Alarm | IP Conflict; MAC Conflict; Network Disconnected; No disk; Illegal Access; Disk Full; Disk R/W error; Video Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; PoE overloaded; IPC voltage abnormal; RTC failure |
| Intelligent Analytics | |
| AI by Camera | Advanced Intelligence |
| Storage | |
| HDD Capacity | Up to 6TB capacity for each HDD |
| External Port | |
| USB | 2×USB2.0 |
| HDMI | 1×HDMI |
| Network Interface | 1×RJ-45, 10/100 Mbps self-adaptive Ethernet port |
| SATA | 1×SATA interface |
| PoE | |
| PoE Interface | 4×RJ45, 10/100 Mbps self-adaptive Ethernet port |
| PoE Budget | 28W |
| Power per PoE Port | 28W |
| Standard | IEEE 802.3 af/at |
| General | |
| UI Language | English; Spanish; Italian; Turkish; French; Polish; Dutch; Hebrew; German; Portuguese |
| Power Supply | DC48V 1A |
| Power Consumption | <10W(without HDD&without PoE) |
| NetWeight | 0.4kg |
| GrossWeight | 0.85kg |
| Boundary Dimensions | 200(L)200(W)43(H)mm |
| Package Dimensions | 315(L)70(W)235(H)mm |
| Operating Temperature | -10℃~+55℃ |
| Operating Humidity | 10%~90%RH |
| Storage Temperature | -10℃~+55℃ |
| Storage Humidity | 10%~90%RH |
| Package Kit | Network Video Recorder; Screw pack; Mouse; Power adapter |
