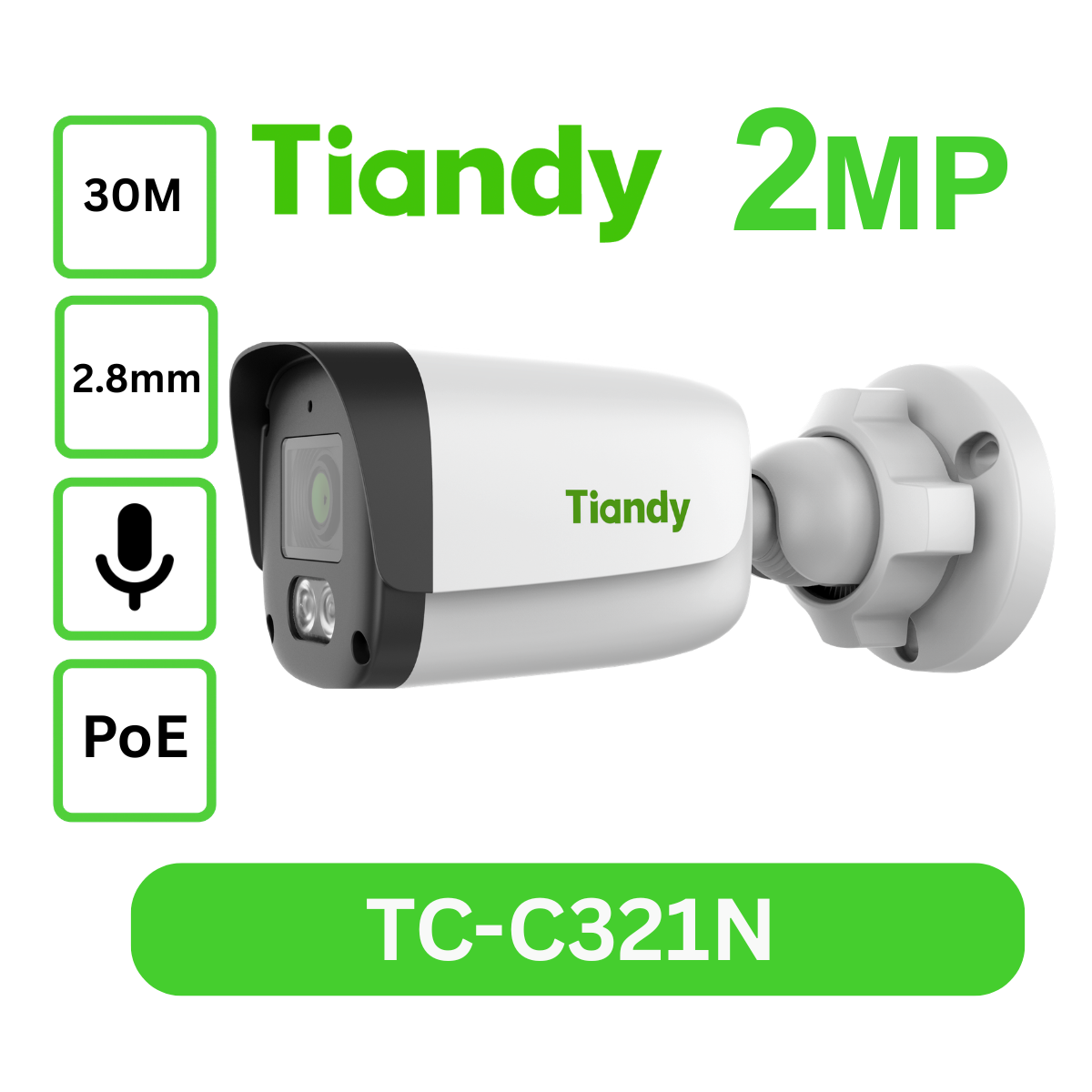

2MP Fixed TC-C321N IR Bullet Camera I3/E/Y/2.8mm/V2.0

  • Metal+Plastic Housing
  • Up to 1920×1080@30fps
  • S+265/H.265/H.264
  • Min. illumination Color: 0.04Lux@F2.2
  • Smart IR, IR Range: 30m
  • Built-in Mic
  • Operating Conditions -30°~60°, 0~95% RH
  • POE
SKU: TC-C321N

Description

Date Title Type Download
2023-12-09 TC-C321N Spec I3-E-Y-2.8mm-V2.0 pdf
Camera
Image Sensor 1/3″CMOS
Min. Illumination Color:0.04Lux@(F2.2,AGC ON),B/W:0Lux with IR
Shutter Time 1s-1/100000s
Day&Night IR-cut filter with auto switch (ICR)
WDR DWDR
S/N >37dB
Angle Adjustment 0-360°;0-80°;0-360°
Lens
Lens Type Fixed
Focal Length 2.8mm
Lens Mount M12
Aperture Range F2.2,Fixed
Field of View 94.4°(H);53.2°(V);108.2°(D)
DORI Distance Detect:40.0m
Observe:15.9m
Recognize:8.0m
Identify:4.0m
Illuminator
IR LEDs 2
IR Distance 30m
Wavelength 850nm
Compression   Standard
Video Compression S+265/H.265/H.264B/H.264M/H.264H
Video Bit Rate 32k-4Mbps
Audio Compression G.711A/G.711U
Audio  Sampling Rate 8kHz
Max. Resolution 1920×1080@30fps
Main Stream PAL:25fps(1920×1080,1280×720,704×576,640×480)
NTSC:30fps(1920×1080,1280×720,704×480,640×480)
Sub Stream PAL:25fps(704×576,704×288,352×288,640×360)
NTSC:30fps(704×480,704×240,352×240,640×360)
BLC Yes
HLC Yes
AGC Yes
3D DNR Yes
White Balance Auto/Semi-auto/Manual
OSD 1 region;16*16/32*32/48*48
Privacy Mask 4 regions
Defog Yes
Feature
Alarm Trigger Motion Detection
Network
ANR N/A
Protocols HTTP;TCP/IP;UDP;ICMP;DHCP;DNS;NTP;IPv4;Telnet;Unicast
System   Compatibility ONVIF Profile S/T
Remote Connection 1
Moblie Client N/A
Web IE10+;Firefox52+;Edge89+;Safari11+;Chrome57+
Interface
Communication   Interface 1 RJ45 10M/ 100M self  adaptive Ethernet port
Built-In Mic Yes
General
Web Client Language English
Operating   Temperature -30℃-60℃
Operating Humidity 0-95%(non-condensing)
Storage Temperature -30℃-60℃
Storage Humidity 0-95%(non-condensing)
Power Supply POE 802.3af;MAX 3W
Protection Surge protection  2000V;Lightning proof 6000V;IP67
Boundary Dimensions 140(L)60(W)60(H)mm
Package Dimensions 155(L)75(W)85(H)mm
GrossWeight 0.2kg
NetWeight 0.15kg
