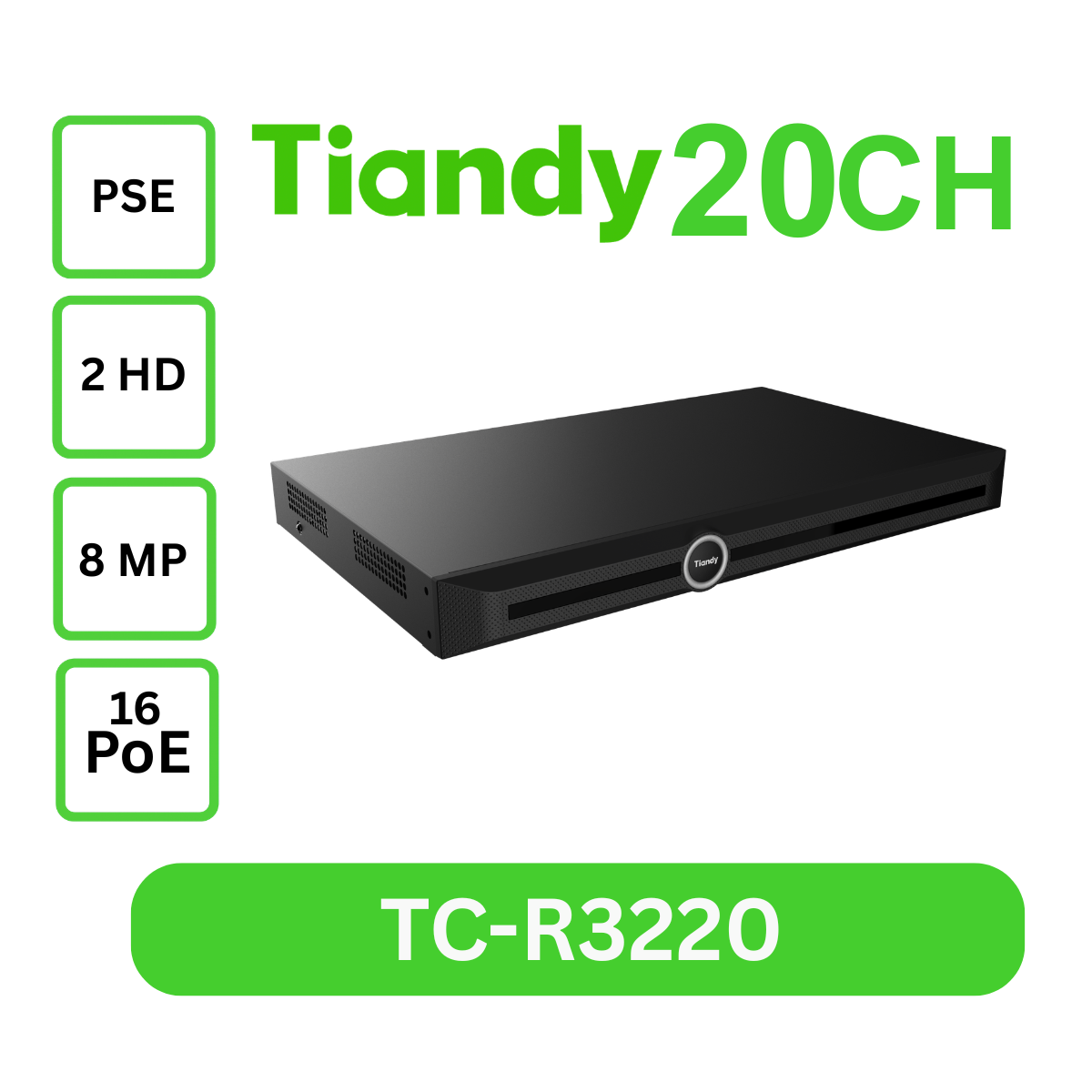

NVR 20ch 16POE 8mp 2HDD TC-R3220 I/B/P16/K/V3.1
• Up to 20-channel input
• 16 PoE ports
• Up to 8MP Resolution Recording
• Incoming Bandwidth 120Mbps
• Outgoing Bandwidth 100Mbps
- Description
- Additional information
Description
| Date | Title | Type | Download |
|---|---|---|---|
| 2021-08-03 | TC-R3220 Spec-I-B-P16-K-V3.1 |  |
| Input | |
| Video Input | 20-ch |
| Max Resolution | 8MP |
| Two-way Audio Input | 1-ch, 3.5mm |
| Bandwidth | Income 120Mbps; Outgoing 100Mbps |
| Output | |
| HDMI/VGA Output | HDMI 1-ch, 3840×2160, 2560×1600, 2560×1440, 1920×1080, 1280×720, 800 ×600, 1024×768, 1366×768, 1440×900, 1280×800 |
| VGA 1-ch, 1920×1080, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800 | |
| Screen Split | 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B |
| Audio Output | 1×RCA |
| Decoding | |
| Decoding Format | S 265/H.265/H.264 |
| Recording Resolution | 8MP/6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Preview Capability | 1×8MP, 1×6MP, 1×5MP, 2×4MP, 4×1080P, 8×720P, 20×4CIF |
| Synchronous Playback | 1×8MP, 1×6MP, 1×5MP, 2×4MP, 2×3MP, 4×1080P, 8×720P |
| Records Encryption | Yes |
| Hard Disk | |
| SATA | 2 SATA interfaces for 2 HDDs |
| Capacity | Up to 10TB for each HDD |
| eSATA Interface | N/A |
| Array Type | N/A |
| External Interface | |
| Network Interface | 1xRJ45 self-adaptive 10/100/1000 Mbps network interface |
| USB Interface | 2xUSB 2.0 |
| Serial Interface | N/A |
| Alarm In/Out | 4/1 |
| Network | |
| Protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, IGMP, QoS, IPV4, IPV6, Multicast, ARP, UDP, SNMP, SSL, Telnet, RTMP, NFS |
| System Compatibility | ONVIF (PROFILE S/T/G), SDK, P2P |
| POE | |
| POE Interface | 16xRJ45 self-adaptive 10/100 Mbps network interface |
| Power per POE Port | 30W |
| Max Current per POE Port | 600mA |
| General | |
| Web Version | Web6 |
| Language | Simple Chinese, Traditional Chinese, English, Spanish, Korean, Italian, Turkish, Russian, Thai, French, Polish, Dutch, Hebraism, Arabic |
| Operating Conditions | -10℃～55℃, 10%~90% RH |
| Power Supply | 100~240V AC, 50~60 Hz |
| Consumption (without HDD) | ≤25W (without HDD) |
| Chassis | 1U |
| Dimensions | 47.5×277×440mm, (1.87×10.91×17.32 inch) |
| Weight (without HDD) | 3.05Kg (6.72lb) |
