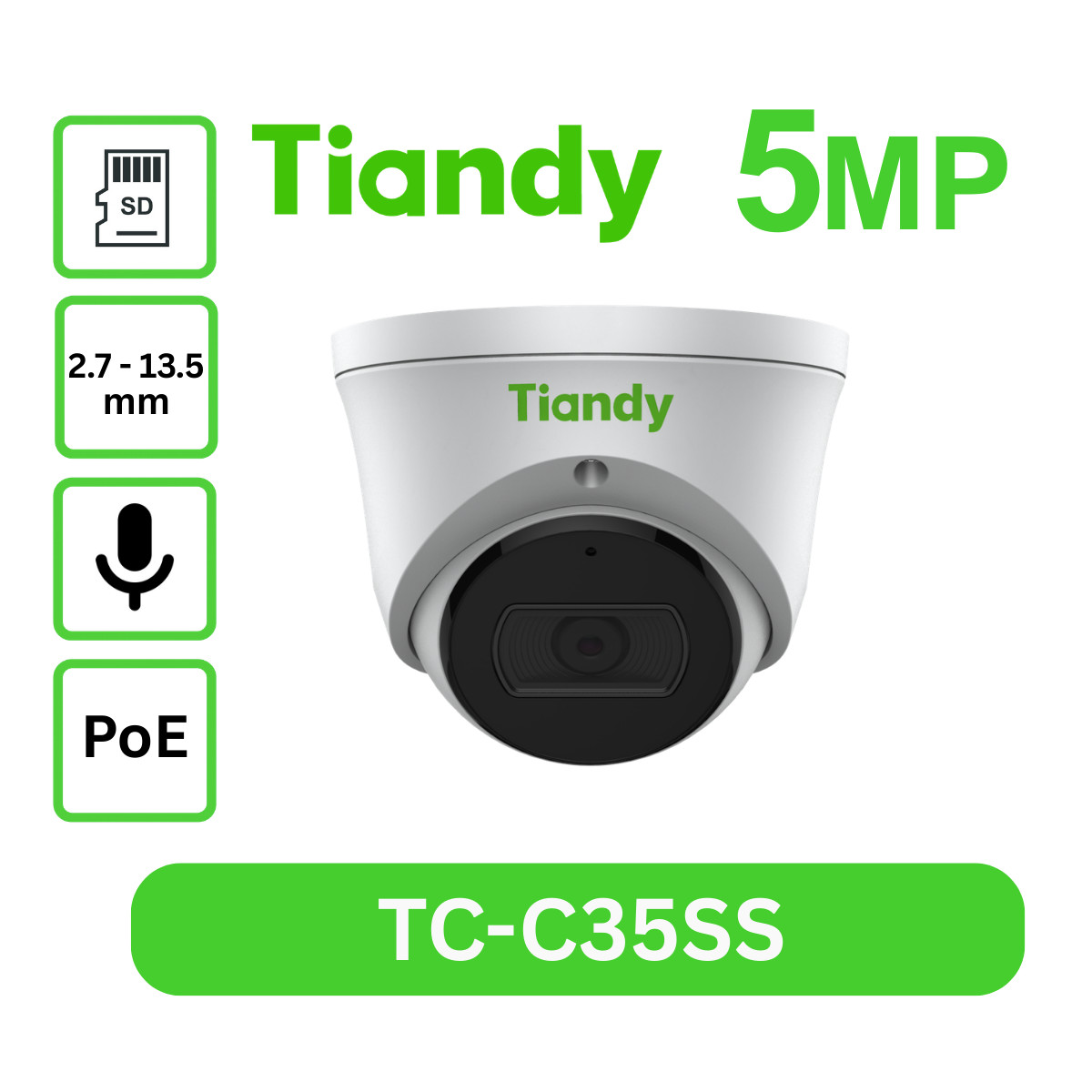

5MP Starlight TC-C35SS Motorized 2.7-13.5mm IR Dome Camera

  • Full Metal Housing
  • Motorized Lens 2.7-13.5mm
  • Up to 2592×1944@30fps, 1920×1080@60fps
  • S 265/H.265/H.264/M-JPEG
  • Min. illumination Color: 0.001Lux@F1.3
  • Smart IR, IR Range: 80m
  • Support Video Analytics
  • Support Human/Vehicle Classification
  • Support Face Capture Mode
  • Built-in Mic, Audio I/O 1/1, alarm I/O 2/1
  • Plugin Free
  • Operating Conditions -35℃~65℃, 0~95% RH
  • POE, IP67
SKU: TC-C35SS

Description

Date Title Type Download
2023-02-03 TC-C35SS Spec-I3-A-E-Y-M-S-H-2.7-13.5mm-4.0 pdf
Camera
Image Sensor 1/2.8″ CMOS
Signal System PAL/NTSC
Min.   Illumination Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR
Shutter Time 1s to   1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
WDR 120dB
Angle   Adjustment pan 0~340°,tilt 0~75°,roate 0~360°
Lens
Lens Type Motorized
Focus 2.7-13.5mm
Lens Mount Ф14
Aperture F1.6
FOV Horizontal   field of view:98.3°~32.2°;Vertical field   of view:54.9°~18.2°
Illuminator
IR LEDs 2
IR Range Up to 30m
Wavelength 850nm
White   LEDs/Warmlights N/A
Compression   Standard
Video   Compression S 265/H.265/H.264
Video Bit Rate 32Kbps~16Mbps
Audio   Compression G.711A/G.711U/ADPCM_D
Audio Bit Rate 8K,32K,48Kbps
Max. Resolution 2592×1944
Main Stream PAL:25fps(2880×1620,2688×1520,2560×1440,2304×1296)50fps(1920×1080,1280×720)
NTSC:30fps(2880×1620,2688×1520,2560×1440,2304×1296)60fps(1920×1080,1280×720)
Sub Stream PAL:25fps(704×576,704×288,352×288,640×360)
NTSC:30fps(704×480,704×240,352×240,640×360)
Third Stream PAL:25fps(1280×720,704×576,640×360,704×288,352×288)
NTSC:30fps(1280×720,704×480,640×360,704×240,352×240)
Image Setting Saturation,brightness,contrast,sharpness,adjustable   by client software or web browser
Image   Enhancement BLC/3D DNR/HLC
ROI Support 8 fixed regions of coding
OSD 16×16,32×32,48×48,64×64,adaptable   size,Letters Such as Week,Date,Time,Total 5 Regions
Picture Overlay Yes
Privacy Mask Yes,4 regions
Smart Defog Yes
Feature
Alarm Trigger Motion Detection,Mask   Alarm,IP Address Conflict
Video Analytics Tripwire,Perimeter,Human/Vehicle Classification
Early   Warning(EW) N/A
Network
ANR Yes(Only   Support Tiandy ANR NVR)
Protocols HTTP,HTTPS,TCP/IP,UDP,UPnP,ICMP,IGMP,SNMP,DHCP,DNS,DDNS,Easy   DDNS,NTP,SMTP,802.1X,QoS,IPv4,IPv6,PPPOE,SSH,Multicast,RTCP,ARP,RTSP,SRTP
System   Compatibility ONVIF(PROFILE   S/T/G),SDK,CGI,Milestone,P2P
Remote   Connection 2
Client Easy7,EasyLive   Plus
Web Version Web6
Interface
Communication   Interface 1 RJ45 10M/   100M self adaptive Ethernet port
Audio I/O 1/1,Mic in
Alarm I/O 1/1
Speaker N/A
Reset Button Yes
On-board   storage Built-in   MicroSD card slot,up to 512 GB
General
Web Client   Language 17 languages
English,Russian,Spanish,Korean,Italian,Turkish,Simple Chinese,Traditional   Chinese,Thai,French,Polish,Dutch,Hebraism,Arabic,Vietnamese,German,Ukrainian
Operating   Conditions -35℃~65℃ ,0~95% RH
Power Supply DC   12V±25%,PoE(802.3af)
Power   Consumption MAX:8W(12V) MAX:9W(PoE)
Protection IP66
Heater N/A
Dimensions Φ132x100mm(Φ5.2×3.94inch)
GrossWeight 0.9Kg(2.05lb)
NetWeight 0.68Kg(1.50lb)
