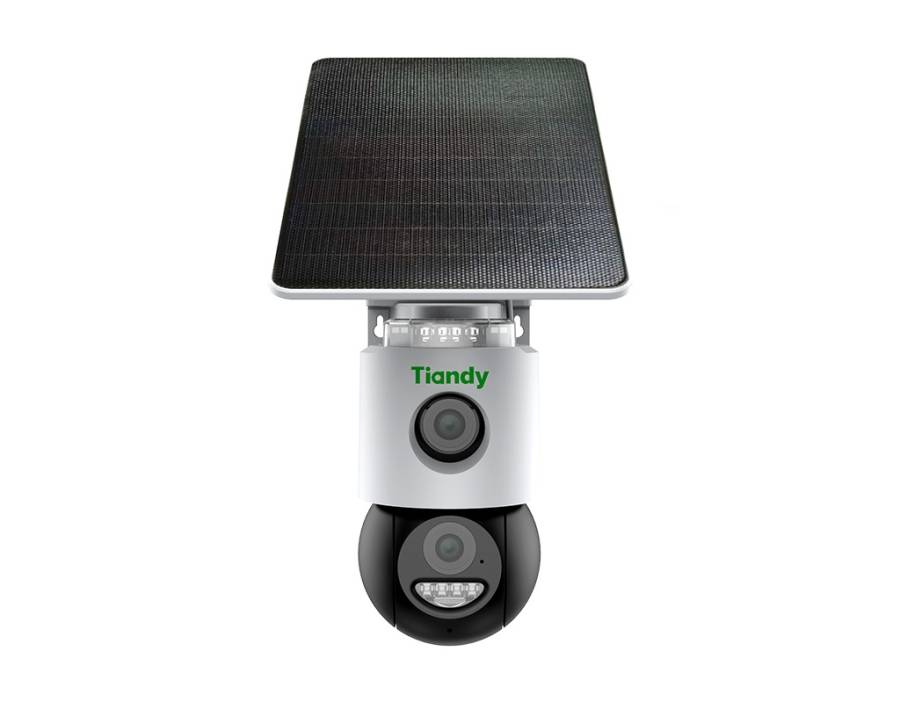

6MP Solar Color Maker 4G TC-H363U

· Early Warning (EW)
· Up to 1920X1080@30fps
· Min. illumination Color: 0.002Lux@F1.4
· Optical zoom: 4×, digital zoom 16×
· Smart IR, IR Range: 30m
· Support Human/Vehicle Classification
· Built-in Mic&Speaker
· S 265/H.265/H.264/M-JPEG

Availability: Available on backorder SKU: TC-H363U

Description

Date Title Type Download
2024-08-16 1D.20010.021585_TC-H363U W4GUSE4mmV4.0_en pdf



Camera
Image Sensor 1/2.9″CMOS
Min. Illumination Color:0.002Lux@(F1.0,AGC ON),B/W:0Lux with IR
Shutter Time 1s~1/100000s
Day&Night NO IR-cut
Smart IR Yes
WDR DWDR
S/N >50dB
Angle Adjustment Panorama:-60~60°(P) Details:0~345°(P); Panorama:5~15° Details:-15~90°
Lens
Lens Type Fixed focal lens
Focal Length 4mm
Lens Mount M12
Aperture Range F1.0
Aperture Type Fixed
Field of View Panorama:81.8°(H) Detail:81.8°(H); Panorama:44.9°(V) Detail:44.9°(V); Panorama:94.9°(D) Detail:94.9°(D)
DORI Distance Detect:57.14m Observe:22.68m Recognize:11.43m Identify:5.71m
Illuminator
White LEDs Panorama:4 Detail:4
Whitelight Distance 20m
Red and Blue Alarm Flash Yes
Compression Standard
Video Compression S+265/H.265/H.264B/H.264M/H.264H
Video Bit Rate 32k~4Mbps
Audio Compression G.711A/G.711U
Audio  Sampling Rate 8kHz/16kHz
Max. Resolution Panorama:3MP,2304×1296@15fps Detail:3MP,2304×1296@15fps
Main Stream Panorama: PAL:15fps(2304×1296, 1920×1080, 1280×720, 704×576, 640×480) NTSC:15fps(2304×1296, 1920×1080, 1280×720, 704×576, 640×480) Detail: PAL:15fps(2304×1296, 1920×1080, 1280×720, 704×576, 640×480) NTSC:15fps(2304×1296, 1920×1080, 1280×720, 704×576, 640×480)
Sub Stream Panorama: PAL:15fps(704×576, 704×288, 640×360, 352×288) NTSC:15fps(704×480, 704×240, 640×360, 352×240) Detail: PAL:15fps(704×576, 704×288, 640×360, 352×288) NTSC:15fps(704×480, 704×240, 640×360, 352×240)
BLC Yes
HLC Yes
AGC Yes
3D DNR Yes
White Balance Auto
OSD 16*16/32*32/48*48
Feature
Exceptions Alarm Disk Full; Disk R/W Error
Linkage Method Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture
Network
Protocols TCP/IP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast
System Compatibility SDK
Remote Connection ≤2
Moblie Client EasyLive Plus
Interface
Built-in Mic Yes
Built-in Speaker Yes
Reset Button Yes
On-board Storage Support microSD/microSDHC/microSDXC card,up to 256GB
General
Operating Temperature -10℃~50℃(14℉~122℉)
Operating Humidity ≤95%RH
Storage Temperature -10℃~50℃(14℉~122℉)
Storage Humidity 10%~95%RH(non-condensing)
Power Supply DC5V/2A
Protection Surge500V; ESD6000V; IP65
Boundary Dimensions 183(L)105W)102(H)mm
Package Dimensions 265(L)195(W)285(H)mm
GrossWeight 1.66kg
