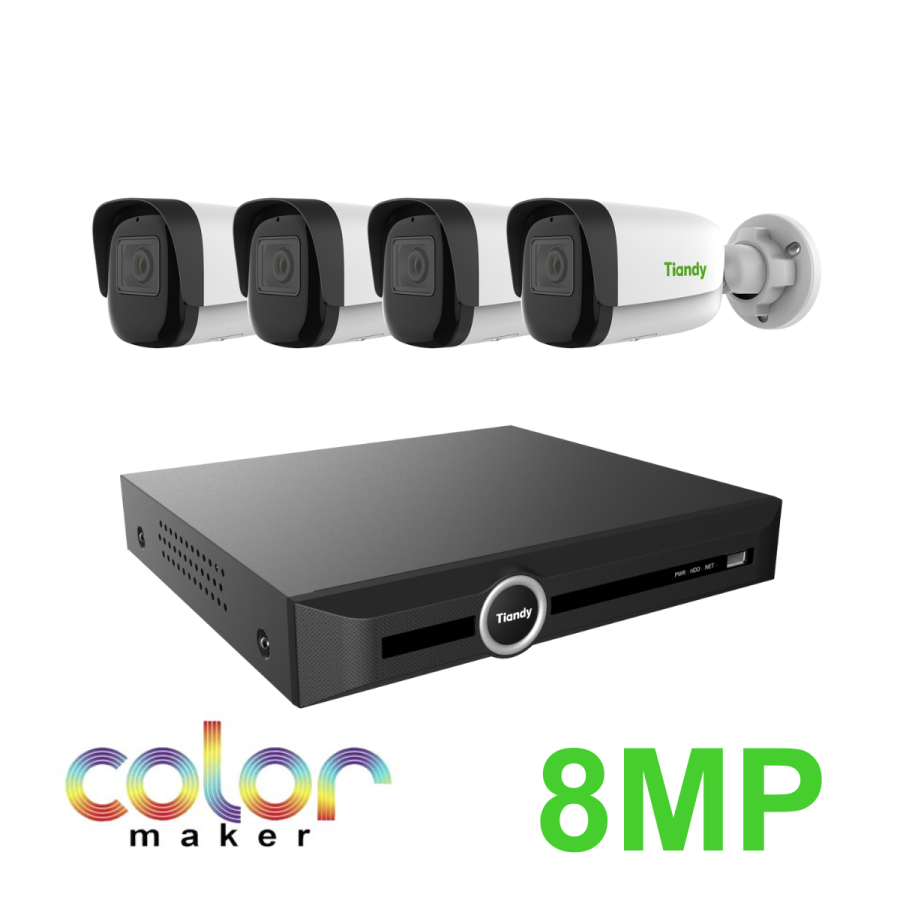

TC-R3110 / 4*TC-C38WQ
- 1* TC-R3110
- 4* TC-C38WQ
- Description
- Additional information
Description
-
Camera Image Sensor 1/2.8″CMOS Min. Illumination Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR Shutter Time 1s~1/100000s Day&Night IR-cut filter with auto switch (ICR) WDR 120dB S/N >42dB Angle Adjustment 0~360°(P); 0~90°(T); 0~360°(R) Lens Lens Type Fixed focal lens Focal Length 2.8mm Lens Mount M12 Aperture Range F1.6 Field of View 105.3°(H); 56.9°(V); 119.7°(D) DORI Distance Detect:77m Observe:30.5m Recognize:15.5m Identify:7.5m Illuminator IR LEDs 2 IR Distance 50m Wavelength 850nm White LEDs 2 Whitelight Distance 15m Compression Standard Video Compression S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG Video Bit Rate 32k~16Mbps Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC Audio Sampling Rate 8kHz/32kHz/48kHz Image Max. Resolution 3840×2160@20fps Main Stream PAL:20fps(3840×2160, 3072×2048), 25fps(2560×1440, 2304×1296, 1920×1080, 1280×720) NTSC:20fps(3840×2160, 3072×2048), 30fps(2560×1440, 2304×1296, 1920×1080, 1280×720) Sub Stream PAL:25fps(704×576, 704×288, 352×288, 640×360) NTSC:30fps(704×480, 704×240, 352×240, 640×360) Third Stream PAL:25fps(704×576, 704×288, 352×288, 640×480) NTSC:30fps(704×480, 704×240, 352×240, 640×480) BLC Yes HLC Yes AGC Yes 3D DNR Yes White Balance Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance ROI 8 rectangular static areas Corridor mode Yes OSD Overlay of additional characters in 5 regions, 2 lines, with a maximum of 127 characters or 42 Chinese characters per region; 16*16/32*32/48*48/64*64/96*96 Picture Overlay 1*200×200 size BMP 24 color bit image overlay Privacy Mask 4 black static areas Defog Yes Feature Alarm Trigger Motion Detection; Mask Alarm; Voltage Alarm; Disk Full; Disk R/W Error; IP Address Conflict; MAC Address Conflict; FTP Server Exception ; Event Input, Event Output
Linkage Method send email; trigger sound; trigger warmlight; trigger recording; trigger capture; notify surveillance center Video Analytics Human/Vehicle Classification; Tripwire; Perimeter; Video Abnormal; Audio Abnormal Rules of behavior analyse in 1 scene 8 Early Warning(EW) Early Warning(EW) Network ANR Yes Protocols HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; DHCP; DNS; DDNS; Easy DDNS; NTP; SMTP; SSL; 802.1X; QoS; IPv4; IPv6; PPPOE; SSH; Unicast; Multicast; RTCP; ARP; SRTP; RTSP; FTP; SFTP; NAS
System Compatibility ONVIF Profile S/T/G/M; CGI; Milestone; RTMP Remote Connection ≤7 Client Easy7 Smart Client Moblie Client EasyLive Plus Interface Communication Interface 1*RJ-45,10/100 Mbps self-adaptive Ethernet port Audio I/O 1; 1 Alarm I/O 1-ch,TTL input,3mA,3.3VDC; 1-ch,TTL output,30mA,12VDC Reset Button Yes On-board storage Support microSD/microSDHC/microSDXC card, up to 512 GB RTC Yes General Web Client Language 19 languages Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/ Ukrainian/Portuguese/Albanian
Operating Temperature -40℃~65℃(No turning on the light) Operating Humidity Humidity 95% or less (no condensation) Storage Temperature -40℃~65℃ Storage Humidity Humidity 95% or less (no condensation) Power Supply DC12V±25%,MAX 7W; POE 802.3af,MAX 8.5W Protection Surge4000V; ESD6000V; IP67 Boundary Dimensions 170(L)73(W)73(H)mm Package Dimensions 195(L)95(W)105(H)mm GrossWeight 0.73kg Input Video Input 10-ch Max Resolution 8MP Two-way Audio Input 1-ch, 3.5mm Bandwidth Income 80Mbps; Outgoing 80Mbps Output HDMI/VGA Output HDMI 1-ch, 3840×2160, 2560×1600, 2560×1440, 1920×1080, 1280×720, 800 ×600, 1024×768, 1366×768, 1440×900, 1280×800 VGA 1-ch, 1920×1080, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800 Screen Split 1/3/4/6/8/9/10 Audio Output 1×RCA Decoding Decoding Format S+265/H.265/H.264 Recording Resolution 8MP/6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF Preview Capability 1×8MP, 1×6MP, 1×5MP, 2×4MP, 2×3MP, 4×1080P, 8×720P, 10×4CIF Synchronous Playback 1×8MP, 1×6MP, 1×5MP, 2×4MP, 2×3MP, 4×1080P, 8×720P Records Encryption Yes Hard Disk SATA 1 SATA interface for 1 HDD Capacity Up to 10TB for each HDD eSATA Interface N/A Array Type N/A External Interface Network Interface 1xRJ45 self-adaptive 10/100 Mbps network interface USB Interface 2xUSB 2.0 Serial Interface N/A Alarm In/Out 4/1 Network Protocol TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, IGMP, QoS, IPV4, IPV6, Multicast, ARP, UDP, SNMP, SSL, Telnet, RTMP, NFS System Compatibility ONVIF (PROFILE S/T/G), SDK, P2P POE POE Interface 8xRJ45 self-adaptive 10/100 Mbps network interface Power per POE Port 30W Max Current per POE Port 600mA General Web Version Web6 Language Simple Chinese, Traditional Chinese, English, Spanish, Korean, Italian, Turkish, Russian, Thai, French, Polish, Dutch, Hebraism, Arabic Operating Conditions -10℃～55℃, 10%~90% RH Power Supply DC48V Consumption (without HDD) ≤20W (without HDD) Chassis 1U Dimensions 45.1×255×231mm, (1.78×10.04×9.09 inch) Weight (without HDD) 1Kg (2.2lb)
