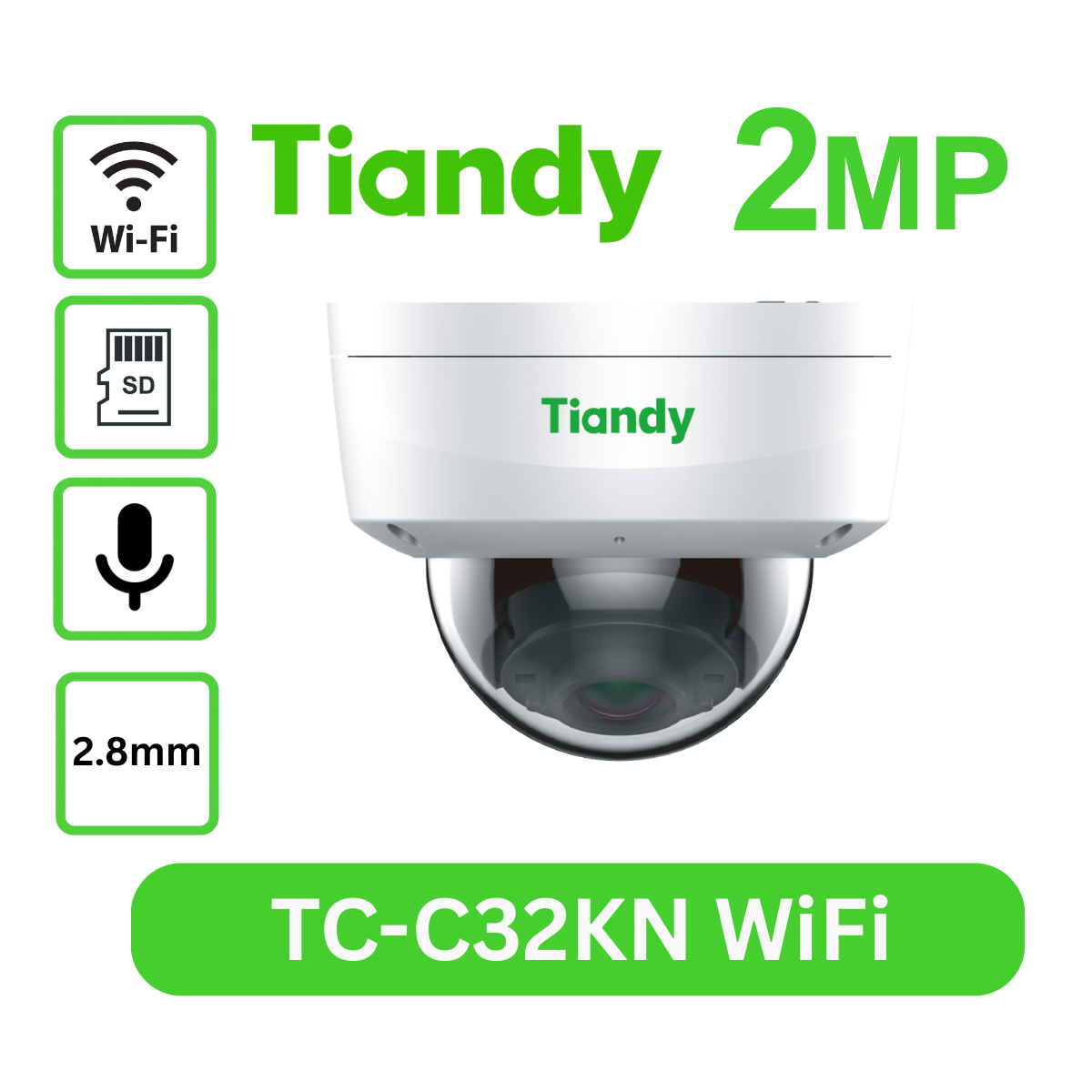

2MP Fixed IR Dome Camera TC-C32KN I3/E/Y/2.8mm

Min. illumination Color: 0.02Lux@F2.0
·Smart IR, IR Range: 30m
·Built-in Mic, SD Card Slot, Reset Button
·POE, IP67, IK10

SKU: TC-C32KN

Description

Date Title Type Download
2022-12-13 TC-C32KN Spec-I3-E-Y-2.8mm-V4.1 pdf
Camera
Image Sensor 1/2.8″ CMOS
Signal System PAL/NTSC
Min. Illumination Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
WDR Digital WDR
Angle Adjustment pan 0~330°,tilt 0~75°,roate 0~350°
Lens
Lens Type Fixed
Focus 2.8mm
Lens Mount M12
Aperture F2.0,Fixed
FOV Horizontal field of view:99.7°
Illuminator
IR LEDs 8
IR Range Up to 30m
Wavelength 850nm
White LEDs/Warmlights N/A
Compression Standard
Video Compression S 265/H.265/H.264
Video Bit Rate 32Kbps~6Mbps
Audio Compression G.711A/G.711U/ADPCM_D
Audio Bit Rate 8K,32K,48Kbps
Max. Resolution 1920×1080
Main Stream PAL:25fps(1920×1080,1280×720,704×576,640×480)
NTSC:30fps(1920×1080,1280×720,704×480,640×480)
Sub Stream PAL:25fps(704×576,704×288,640×360,352×288)
NTSC:30fps(704×480,704×240,640×360,352×240)
Third Stream N/A
Image Setting Saturation,brightness,contrast,sharpness,adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC
ROI N/A
OSD 16×16,32×32,48×48,adaptable size,Letters Such as Week,Date,Time,Total 1 Regions
Picture Overlay N/A
Privacy Mask Yes,4 regions
Smart Defog Yes
Feature
Alarm Trigger Motion Detection,Mask Alarm,IP Address Conflict
Video Analytics Tripwire,Perimeter
Early Warning(EW) N/A
Network
ANR Yes(Only Support Tiandy ANR NVR)
Protocols HTTP,TCP/IP,ICMP,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,UPnP,UDP
System Compatibility ONVIF(PROFILE S/T/G),SDK,CGI,Milestone,P2P(Mutually exclusive with Profile G)
Remote Connection 2
Client Easy7,EasyLive
Web Version Web6
Interface
Communication Interface 1 RJ45 10M/ 100M self adaptive Ethernet port
Audio I/O Mic in
Alarm I/O N/A
Speaker N/A
Reset Button Yes
On-board storage Built-in MicroSD card slot,up to 512 GB
General
Web Client Language 17 languages
English,Russian,Spanish,Korean,Italian,Turkish,Simple Chinese,Traditional Chinese,Thai,French,Polish,Dutch,Hebraism,Arabic,Vietnamese,German,Ukrainian
Operating Conditions -35℃~60℃,0~95% RH
Power Supply DC 12V±25%,PoE(802.3af)
Power Consumption MAX:5W(12V) MAX:6W(PoE)
Protection IP67,IK10
Heater N/A
Dimensions Φ120x90mm( Φ4.72×3.54inch)
GrossWeight 0.6Kg(1.32lb)
NetWeight 0.4Kg(0.88lb)
