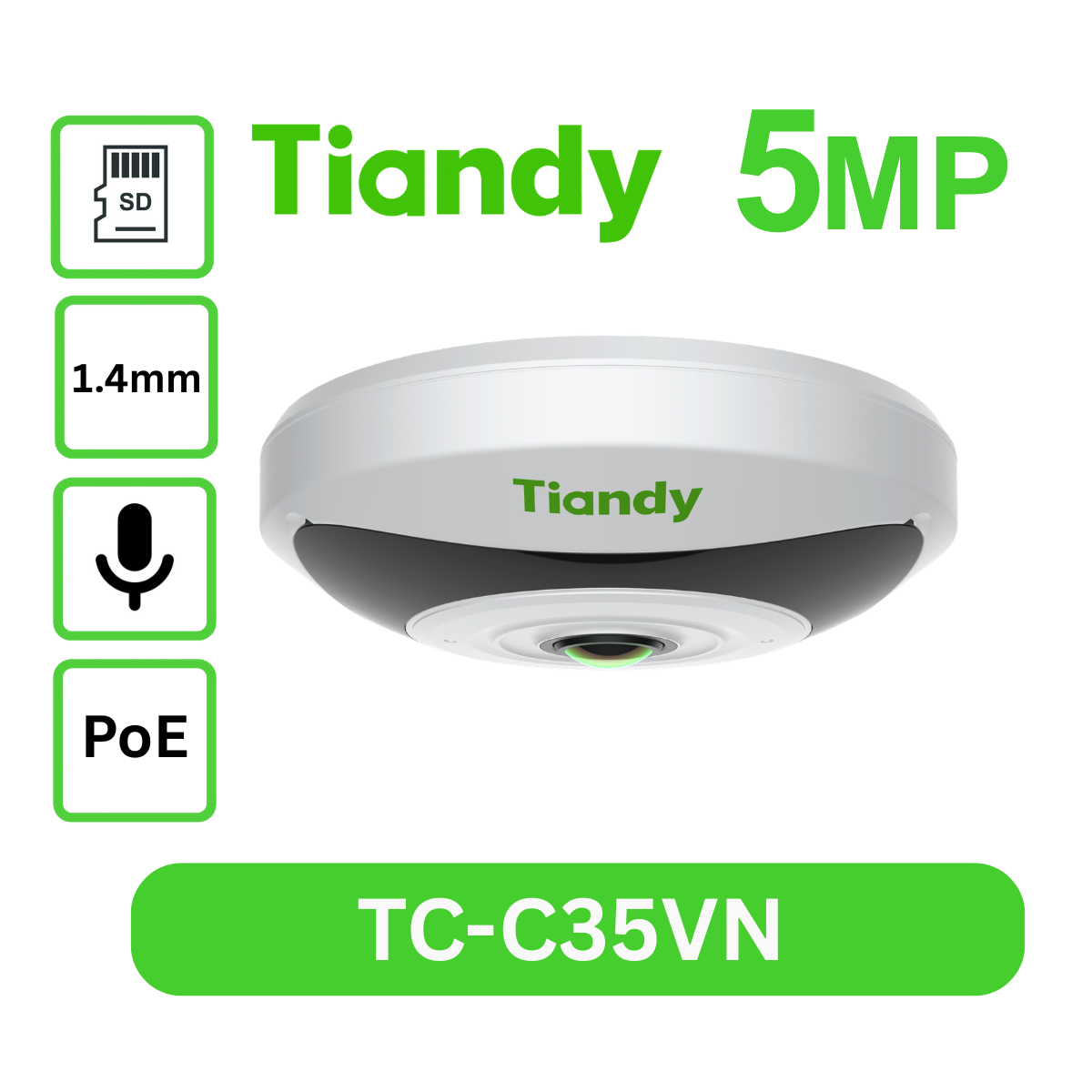

5MP Fisheye Camera TC-C35VN I3/E/Y/1.4mm/V4.2
- Metal Plastic Housing
- Up to 2592×1944@30fps
- S 265/H.265/H.264/M-JPEG
- Min. illumination Color: 0.02Lux@F2.0
- Smart IR, IR Range: 30m
- Audio I/O 1/1,Alarm I/O 1/1
- Support Tripwire,Perimeter,Double Tripwire
- Support Heatmap
- Built-in Mic, SD Card Solt
- Operating Conditions -10°~50°, 0~95% RH
- POE
- Description
- Additional information
Description
| Date | Title | Type | Download |
|---|---|---|---|
| 2024-01-02 | TC-C35VN SpecI3EY1.4mmV4.2 |  |
| Camera | |
| Image Sensor | 1/2.7″CMOS |
| Min. Illumination | Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR |
| Shutter Time | 1s-1/100000s |
| Day&Night | IR-cut filter with auto switch (ICR) |
| WDR | 120dB |
| S/N | >39dB |
| Angle Adjustment | N/A |
| Lens | |
| Lens Type | Fixed |
| Focal Length | 1.4mm |
| Lens Mount | M12 |
| Aperture Range | F2.0,Fixed |
| Field of View | 180°(H);180°(V);180°(D) |
| DORI Distance | Detect:24m Observe:9m Recognize:4.8m Identify:2.5m |
| Illuminator | |
| IR LEDs | 3 |
| IR Distance | 30m |
| Wavelength | 850nm |
| White LEDs | N/A |
| Whitelight Distance | N/A |
| Compression Standard | |
| Video Compression | S 265/H.265/H.264B/H.264M/H.264H/Motion JPEG |
| Video Bit Rate | 32k-16Mbps |
| Audio Compression | G.711A/G.711U/ADPCM_D/AAC_LC |
| Audio Sampling Rate | 8kHz/32kHz/48kHz |
| Image | |
| Max. Resolution | 2592×1944@30fps |
| Main Stream | PAL:25fps(2592×1944,2560×1440,1920×1080,1280×720) NTSC:30fps(2592×1944,2560×1440,1920×1080,1280×720) |
| Sub Stream | PAL:25fps(704×576,640×360,704×288,352×288) NTSC:30fps(704×480,640×360,704×240,352×240) |
| Third Stream | PAL:25fps(1920×1080,1280*720) NTSC:30fps(1920×1080,1280*720) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/Incandescent lamp/Locked white balance |
| ROI | 8 regions |
| Corridor mode | N/A |
| EIS | N/A |
| OSD | 5regions;16*16/32*32/48*48/64*64/96*96 |
| Picture Overlay | 1 region |
| Privacy Mask | 4 regions |
| Defog | Yes |
| Feature | |
| Alarm Trigger | Motion Detection;Mask Alarm;Voltage Alarm;Disk Full;Disk R/W Error;IP Address Conflict;MAC Address Conflict;FTP Server Exception ;Event Input, Event Output |
| Linkage Method | send email;trigger sound;trigger recording;trigger capture;notify surveillance center |
| Video Analytics | Tripwire;Perimeter;Heatmap |
| Rules of behavior analyse in 1 scene | 8 |
| Early Warning(EW) | N/A |
| Auto-Tracking | N/A |
| Face Mode | N/A |
| Face Detection Performance | N/A |
| Network | |
| ANR | ANR |
| Protocols | HTTP;HTTPS;TCP/IP;UDP;UPnP;ICMP;IGMP;SNMP;DHCP;DNS;DDNS;Easy DDNS;NTP;SMTP;SSL;802.1X;QoS;IPv4;IPv6;PPPOE;SSH;Unicast;Multicast;RTCP;ARP;SRTP;RTSP;FTP;SFTP;NAS |
| System Compatibility | onvif Profile S/T/G;CGI;MIL STONE;RTMP |
| Remote Connection | ≤2 |
| Client | Easy7 Smart Client |
| Moblie Client | EasyLive Plus |
| Web | IE10 ;Firefox52 ;Edge89 ;Safari11 ;Chrome57 |
| Interface | |
| Communication Interface | 1 RJ45 10M/ 100M self adaptive Ethernet port |
| Audio I/O | 1channel in;1channel out |
| Alarm I/O | 1channel in,3mA,3.3VDC;1channel out,30mA,12VDC |
| Built-In Mic | Yes |
| Built-In Speaker | N/A |
| Reset Button | Yes |
| On-board storage | Built-in Micro SD card slot, up to 512 GB |
| Additional interfaces | N/A |
| General | |
| Web Client Language | 17languages Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian |
| Operating Temperature | -10℃-50℃ |
| Operating Humidity | 0-95% |
| Storage Temperature | -10℃-50℃ |
| Storage Humidity | 0-95%(non-condensing) |
| Power Supply | DC12V±25%,MAX 8.5W;POE 802.3at,MAX 9.5W |
| Protection | Surge protection 2000V;Lightning proof 6000V |
| Boundary Dimensions | 122(L)122(W)39(H)mm |
| Package Dimensions | 140(L)140(W)120(H)mm |
| GrossWeight | 0.416kg |
| NetWeight | 0.26kg |
